Industrial valve systems need reliable and controlled movement to operate properly. A suitable gearbox can help transmit torque efficiently while making valve operation smoother and more manageable. A Multi Turn Bevel Gearbox is designed for applications that require multiple rotations to operate valves or other mechanical equipment. It combines bevel gear technology with multi-turn movement to support controlled mechanical operation. Industries can use these gearboxes in different valve and automation systems where dependable performance is important. Jayveer Enterprise provides industrial gearbox solutions for applications that require reliable mechanical power transmission and valve control.

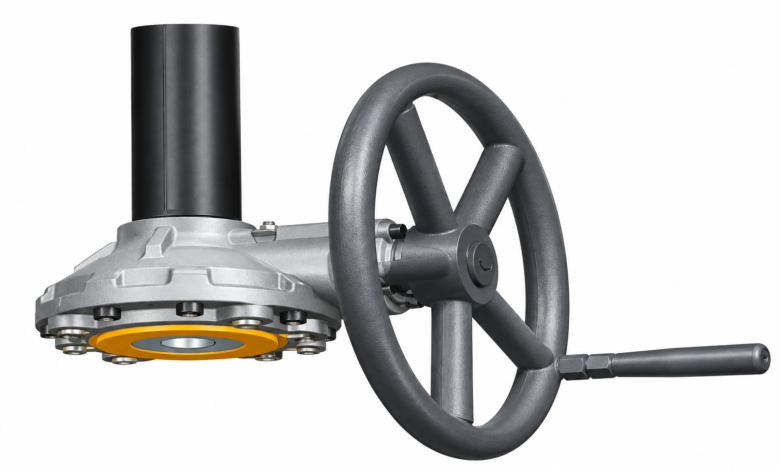

What Is a Multi Turn Bevel Gearbox?
A Multi Turn Bevel Gearbox is a mechanical transmission unit that transfers rotational movement through bevel gears while allowing multiple turns at the output. The bevel gear arrangement can change the direction of torque transmission, depending on the gearbox design. Multi-turn operation makes this type of gearbox suitable for valves that require several rotations to move between open and closed positions. The gearbox can help increase mechanical advantage and provide controlled movement. Its exact performance depends on factors such as design, gear ratio, torque requirements, operating conditions, and the valve application.
How Does a Multi Turn Bevel Gearbox Work?
The gearbox uses bevel gears to transmit rotational force between shafts positioned at an angle. When an operator or actuator provides input rotation, the internal gears transfer this movement to the output shaft. The gear ratio determines how input movement translates into output speed and torque. In a multi-turn application, the output shaft can rotate through several turns to operate the connected valve. This controlled transmission helps match the operating requirements of the valve with the available input force. Proper gearbox selection is important because different valves require different torque and operating characteristics.
Applications of Multi Turn Bevel Gearboxes
Multi Turn Bevel Gearbox systems can be used in industrial valve applications where multiple rotations are required. They can support different types of valves used in water treatment, power generation, process industries, manufacturing plants, and other industrial facilities. These gearboxes may also be integrated with manual or automated valve operating systems. The specific application depends on the valve design, operating torque, environmental conditions, and required control method. Before selecting a gearbox, engineers should evaluate the operating requirements carefully to ensure compatibility with the connected equipment.
Benefits of Multi Turn Bevel Gearbox Systems
A properly selected Multi Turn Bevel Gearbox can offer several practical advantages in industrial applications. The bevel gear arrangement can provide efficient torque transmission while changing the direction of mechanical movement. Multi-turn operation allows the gearbox to work with valves that require several rotations for complete movement. A suitable gear ratio can also help provide controlled output speed and torque. Furthermore, a robust gearbox design can support demanding industrial environments when it is correctly specified and maintained. These advantages make multi-turn bevel gearboxes useful for various valve control and mechanical transmission applications.
Choosing the Right Gearbox
Selecting the right gearbox requires careful consideration of the connected valve and operating conditions. Important factors include required torque, number of turns, input speed, output speed, mounting arrangement, operating frequency, and environmental conditions. The valve type and size should also be considered before finalizing the gearbox. If the gearbox does not match the required torque or operating characteristics, performance can be affected. Therefore, technical specifications should be reviewed carefully before installation. A professional gearbox supplier can help customers identify a suitable solution based on their specific application.
Importance of Gear Ratio
Gear ratio is an important factor when selecting a Multi Turn Bevel Gearbox. It determines the relationship between input rotation and output rotation while affecting available torque and operating speed. A higher ratio can provide greater mechanical advantage but may reduce output speed. On the other hand, a lower ratio may provide faster movement with different torque characteristics. The correct ratio depends on the valve’s operating requirements and the available input power. Engineers should therefore consider both torque and speed when selecting the gearbox rather than focusing on only one specification.
Maintenance and Performance
Regular maintenance can help support reliable gearbox operation over time. Maintenance requirements depend on the gearbox design, operating environment, and manufacturer’s recommendations. Inspection may include checking for unusual noise, vibration, lubrication requirements, loose components, and visible damage. Proper lubrication can help reduce friction and support smooth gear movement when required by the gearbox design. Operators should also monitor the connected valve and ensure that the system is not operating beyond its specified limits. Following recommended maintenance procedures can help identify potential issues before they affect the overall system.
Why Choose Jayveer Enterprise?
Choosing an experienced industrial gearbox supplier can make the selection process easier. Jayveer Enterprise focuses on industrial gearbox solutions for applications that require dependable mechanical transmission and valve operation. Understanding the application before selecting a gearbox is important because every industrial system can have different torque, speed, mounting, and environmental requirements. A suitable solution should match the connected equipment and operating conditions. Customers can discuss their technical requirements with Jayveer Enterprise to identify an appropriate gearbox option for their industrial application.
Frequently Asked Questions
What is a Multi Turn Bevel Gearbox?
A Multi Turn Bevel Gearbox is a mechanical transmission unit that uses bevel gears and multi-turn output movement to operate connected equipment. It is commonly considered for industrial valves that require multiple rotations between operating positions.
Where are Multi Turn Bevel Gearboxes used?
They can be used in various industrial valve applications, including water treatment, power, manufacturing, and process industries. The exact application depends on the valve type, torque requirement, operating conditions, and gearbox specifications.
How do I select the right gearbox?
Consider the required torque, number of turns, input speed, output speed, valve type, mounting arrangement, operating frequency, and environmental conditions. Technical specifications should be reviewed before selecting the gearbox.
Why is the gear ratio important?
The gear ratio affects the relationship between input and output movement, including output speed and available torque. Selecting the appropriate ratio helps match gearbox performance with the operating requirements of the connected valve.
How can I maintain a bevel gearbox?
Maintenance should follow the gearbox manufacturer’s recommendations. Depending on the design, regular checks may include lubrication, unusual noise, vibration, loose components, and visible damage. Proper maintenance can support reliable operation.
Conclusion
A Multi Turn Bevel Gearbox can provide controlled torque transmission for industrial valves and other mechanical applications that require multiple output rotations. Proper selection is important because torque, speed, gear ratio, valve type, and operating conditions can vary between systems. Regular inspection and suitable maintenance can also support dependable performance. Jayveer Enterprise provides industrial gearbox solutions for different valve and mechanical transmission requirements. If you need a suitable gearbox for your application, discuss your technical requirements with a professional supplier before making a selection.
